Miscellaneous Information

Additional Notes

If you're feeling desperate (or perhaps lucky), you can sift through Jack Carlton's work notes. I warn you that these are not well organized and contain lots of information not about this DAQ. However, they do contain some documentation of my assembly and troubleshooting of this DAQ.

What is (was) g-2?

g-2 was an experiment to that examined the precession of muons that are subjected to a magnetic field to test the standard model's prediction of muon g factor. Because many of the g-2 collaborators now work on PIONEER, it is convienent to repurpose the data acquisition system used for g-2 for PIONEER test stands.

Initialism Cheatsheet

Initialism	Meaning	Example
DAQ	Data Acquisition
ADC	Analog-to-Digital Converter
10GbE	10 Gigabit Ethernet
AFE	Analog Front End
FPGA	Field Programmable Gate Array
FMC	FPGA Mezzanine Card	FC7 SFP Interface
CPU	Central Processing Unit	Intel Core i7-12700K
GPU	Graphics Processing Unit	NVIDIA A5000
uTCA (µTCA)	Micro Telecommunications Computing Architecture
WFD	Waveform Digitizer	WFD5
FC	Flexible Controller	FC7
AMC	Advanced Mezzanine Card	AMC13 (also FC7 and WFD5)
MCH	MicroTCA Carrier Hub
DDR	Double Data Rate	DDR3, DDR4 (RAM)
PCIe	Peripheral Component Interconnect Express	PCIe2, PCIe3, ...
SFP	Small Form-factor Pluggable	Finisar SFP transceiver
SFP+	Enhanced Small Form-factor Pluggable	Avago SFP+ transceiver
CLI	Command Line Interface
TTC	Timing, Trigger, and Control
MTU	Maximum Transmission Unit
IP	Internet Protocol

---

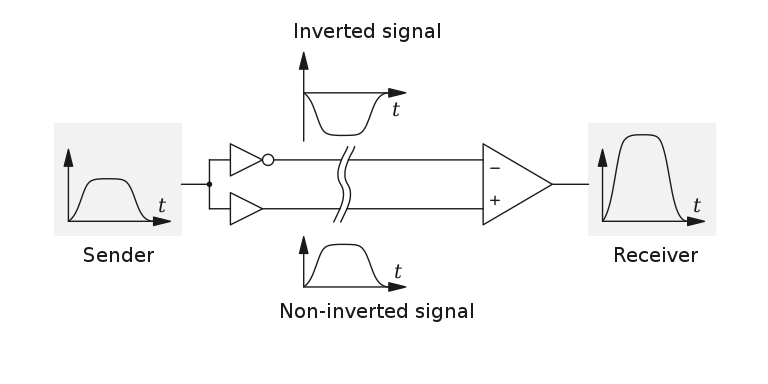

Differential Signals

Differential signals offer several advantages over single-ended signals:

• More resistant to noise: Differential signaling reduces susceptibility to noise interference, resulting in cleaner signal transmission.
• Lower supply voltages: Differential signaling allows for the use of lower supply voltages (like Low Voltage CMOS (LVCMOS) at 3.0–3.3V), which can lead to reduced power consumption.
• Higher operating frequencies: Due to better noise immunity and lower voltage swings, differential signals enable higher operating frequencies in electronic circuits.

Read more about differential signaling on Wikipedia.

---

Limitations of Meinberg Card

The meinberg card seems to be limited to rates of ~2.5KHz. While this is not a critical (run ending) issue, the meinberg will have to "catch up" at the end of runs. It may also need to be removed from the event buider (i.e. change the buffer it writes on to something that doesn't include "BUF" at the beginning).

In a study performed on the meinberg card, we found it behaves strangley at high rates. Sometimes it "misses" events and sometimes is has long wait periods. See the plots below.

---

Port Forwarding an SSH Connection

In many cases, you will need to access a web server running on a remote machine that has no Graphical User Interface (GUI). This can be done securely using SSH port forwarding. Below are instructions for setting up port forwarding on a RHEL Linux machine so you can view a webpage served on localhost:8080 from your local machine with a GUI (ex. laptop).

Prerequisites

• SSH access to the remote RHEL Linux machine.
• An SSH client on your local machine. e.g. ssh command in a terminal, (you can also use PuTTY on Windows though I would not recommend this; you can still use ssh on windows).
• Ensure the remote machine is configured to allow SSH connections. The SSH service should be running, and the firewall should permit SSH traffic (usually on port 22).

Instructions

1 Ensure SSH service is running on the remote machine:

sudo systemctl start sshd
sudo systemctl enable sshd

2 Configure the firewall to allow SSH connections on the remote machine:

    sudo firewall-cmd --permanent --add-service=ssh
    sudo firewall-cmd --reload

3 Open a terminal on your local machine.

4 Establish an SSH connection with port forwarding:

Use the following command to create an SSH tunnel. Replace user with your username on the remote machine and remote_host with the IP address or hostname of the remote machine.

ssh -L 8080:localhost:8080 user@remote_host

This command forwards your laptop's port 8080 to the remote machine's port 8080. Here's a breakdown of the command:

• -L 8080:localhost:8080: Specifies the local port (8080) to be forwarded to the remote port (8080 on localhost of the remote machine).
• user@remote_host: The SSH login to the remote machine.

5 Access the webpage:

Open a web browser on your laptop and navigate to:

http://localhost:8080

You should see the webpage served by the remote machine on port 8080.

Example

If you want to access the root user on a machine with IP 192.168.50.10:

ssh -L 8080:localhost:8080 root@192.168.50.10

After running this command, open a browser on your laptop and go to http://localhost:8080 to view the webpage hosted on the remote machine.

Notes

• Ensure that the web server on the remote machine is configured to listen on localhost:8080 and is running.
• If port 8080 is already in use on your local machine, you can use a different local port (e.g., 9090) by changing the command to -L 9090:localhost:8080 and then accessing http://localhost:9090 on your laptop.

This setup allows you to securely access the web server running on your remote RHEL machine from your local laptop using SSH port forwarding.

---

2023 PSI LYSO Testbeam DAQ Installer

There is a gm2daq-installer that has been tested on RHEL7 systems. This will attempt to install the listed packages below. This installer's purpose was to streamline installation of the 2023 PSI LYSO testbeam usage of the DAQ. WARNING: As some of these packages have been updated, the installer may fail. Use this at your own disgression. In particular, I don't expect the unpacker, publisher, meinberg, and gm2daq software to install correctly. If you use this tool, it would be best to install those by hand if needed by following the links. Furthermore on RHEL9 systems (such as ALMA9) , the distributed pre-compiled binaries are more up to date, which simplifies the installation process greatly. As a result, I would only suggest using the installer for RHEL7 systems (such as SL7 or CentOS7).

To attempt to install everything with the installer:

git clone git@github.com:PIONEER-Experiment/gm2daq-installer.git
cd gm2daq-installer
./install.sh

List of Installed Software

If you navigate to

cd gm2daq-installer/subprocess_scripts

you can install packages individually:

Script Name	Description
install_epel-release.sh	Installs EPEL Release
install_openssl-devel.sh	Installs OpenSSL Development Libraries
install_cmake.sh	Installs CMake
install_cmake3.sh	Installs CMake3
install_readline.sh	Installs Readline Development Tools
install_root.sh	Installs ROOT (pre-compiled binary)
install_erlang.sh	Installs Erlang
install_zlib.sh	Installs zlib Development Libraries
install_devtoolset-8.sh	Installs Devtoolset-8
install_devtoolset-11.sh	Installs Devtoolset-11
install_rh-python36.sh	Installs Python 3.6
install_libXft.sh	Installs libXft Development Libraries
install_libXpm.sh	Installs libXpm Development Libraries
install_libXt.sh	Installs libXt Development Libraries
install_libXext.sh	Installs libXext Development Libraries
install_patch.sh	Installs Patch Development Tools
install_libtool.sh	Installs Libtool Development Tools
install_meinberg_driver.sh	Installs Meinberg Driver
install_midas.sh	Installs MIDAS
install_pugixml.sh	Installs pugixml Development Libraries
install_boost_1_53_0.sh	Installs Boost 1.53.0
install_cactus.sh	Installs Cactus
install_gm2daq.sh	Installs gm2daq
install_root_from_source.sh	Installs ROOT (from source)
install_boost_1_70_0.sh	Installs Boost 1.70.0
install_zeroMQ.sh	Installs ZeroMQ Development Libraries
install_cppzmq.sh	Installs C++ ZeroMQ
install_eigen.sh	Installs Eigen Development Libraries
install_unpacker.sh	Installs Midas Data File Unpacker
install_publisher.sh	Installs Midas Data Publisher

you can also run

./install.sh --skip root_from_source,zeroMQ,...

to skip certain packages, for example. From the list above, remove the install_ and .sh parts and add it to the comma seperated list following the --skip flag to skip it. For instance, I would recommend trying:

---

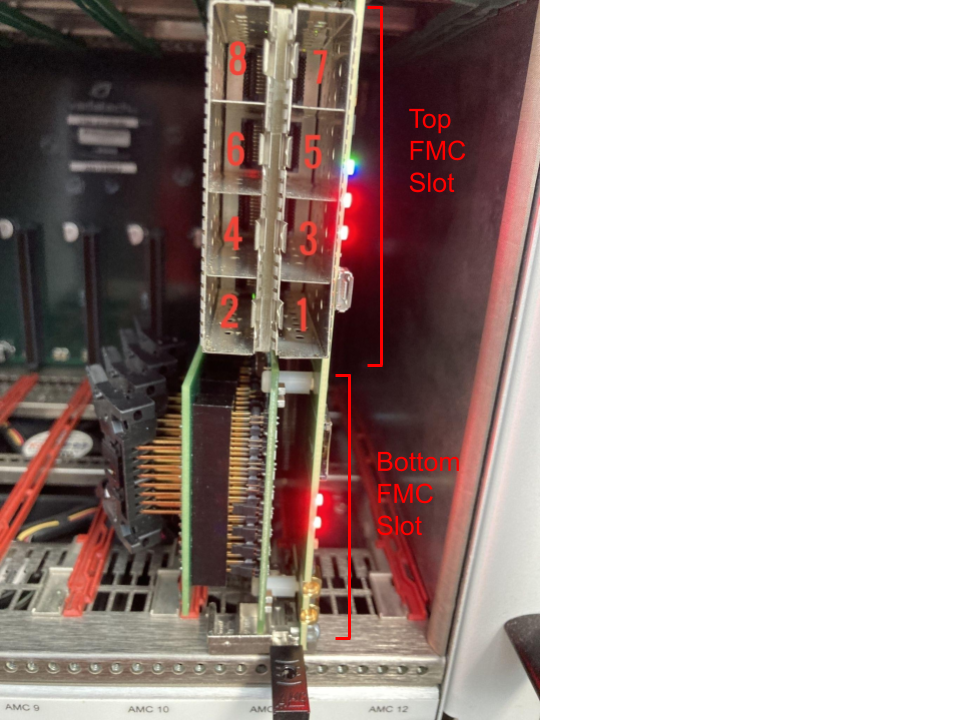

FC7 Labeling

These labelings are particularly useful when configuring the CCC ODB settings

---

Using Screens in Linux

Screens are useful for running the DAQ because it allows you start and view multiple frontends on one terminal. You can read more on this webpage for example. Below are a few useful screen commands:

Starting a Screen

screen -S <session_name>

Listing Screens

screen -ls

Stopping a Screen

To stop a screen session, first list all sessions to find the session ID:

screen -ls

Then, stop the desired screen session:

screen -X -S <session_id> quit

Attaching to a Screen

screen -r <session_name>

Detaching from a Screen

To detach from a screen session you have attached to, press Ctrl + a and d. This will return you to your previous shell session.

Scrolling up in a Screen

To scroll up in a screen session, press Ctrl + a and then [. Use the arrow keys to navigate. To exit scroll mode, press q.

---

Getting LD_LIBRARY_PATH Into a Screen Session

For some reason, stuffing LD_LIBRARY_PATH into a screen session is convoluted. To copy your current shell sessions LD_LIBRARY_PATH environment variable into a screen session, you need to edit your .screenrc file for the profile you launch the screen from. Simply run these two commands:

touch ~/.screenrc
echo 'shell -/bin/bash -c "export LD_LIBRARY_PATH=$LD_LIBRARY_PATH && exec /bin/bash"' >> ~/.screenrc

Now for every new screen session, your LD_LIBRARY_PATH environment variable will be copied over from your current shell session to the new screen session. This is useful when you have custom libraries added to your LD_LIBRARY_PATH; the environment setup script used in the DAQ installation guide adds some custom libraries LD_LIBRARY_PATH.

---

The N.A.T. MCH

Overview

An alternative to the VadaTech MCH, it has the same functionality.

Configuration

See NAT MCH manual for more details. Depending on the NAT MCH version, you may be able to ssh into the NAT MCH.

In any event, you can configure the NAT MCH with telnet

sudo yum install telnet
telnet 192.68.1.41

From there you can follow the prompts to configure the NAT MCH. If you are having trouble finding the NAT MCH IP try pinging or scanning the network.

---

Finisar SFP vs. Avago SFP+

SFP+s (such as Avago SFP+s) do not work with the FC7 to AMC13 link; an SFP (such as a finisar SFP) is needed. Similarly, the 10GbE links from AMC13 to the DAQ computer must use SFP+s.

---

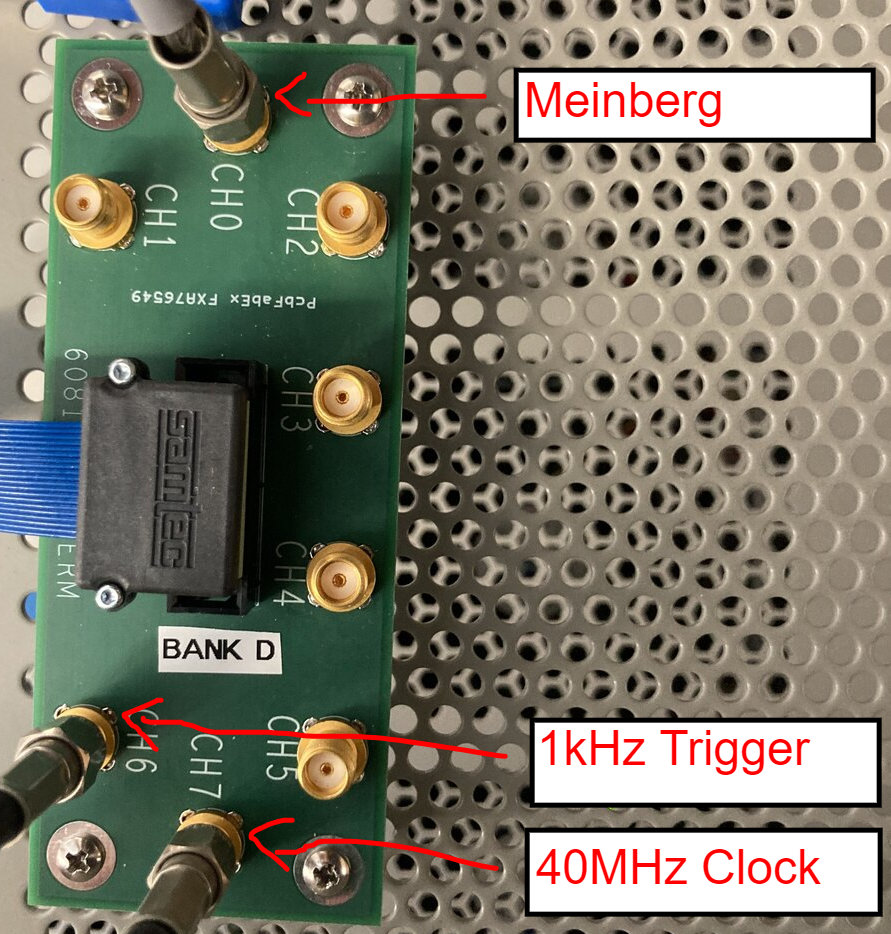

Bank Signals

Copies of D0-D3 triggers are sent out of D0-D3, while D4-D7 should be configured to be input signals. The trigger input should go to D6 (It does not have to be 1kHz). A 40MHz clock should go in D7.

CentOS7 Related Installation Steps

CentOS7 has reached it's EOL. Many of these steps will no longer work because package manager repo links are dead. They are here for legacy referencing purposes only.

Development Tools

Overview

These tools include compilers, libraries, and other utilities that facilitate software development and installation.

Installation Guide

1 Install yum package manager

sudo dnf install yum

2 Update the package index:

sudo yum update

3 Enable the EPEL repository:

sudo yum install epel-release

4 Install Development Tools and Dependencies:

sudo yum groupinstall "Development Tools"
sudo yum install cmake gcc-c++ gcc binutils libX11-devel libXpm-devel libXft-devel libXext-devel

5 Install Python

sudo yum install python3

Note: CentOS7 may not have python3 available in base repositories, you can install via yum install -y rh-python36.

---

ROOT

Overview

ROOT is an open-source data analysis framework developed by CERN. It is widely used in high-energy physics for data processing, statistical analysis, visualization, and storage. It is needed for some features of Midas.

Installation Guide (Build from source)

General installaiton guides are provided by ROOT at their Installing ROOT and Building ROOT from source pages.

1 Example building latest stable branch from source

git clone --branch latest-stable --depth=1 https://github.com/root-project/root.git root_src
mkdir root_build root_install && cd root_build
cmake -DCMAKE_INSTALL_PREFIX=../root_install ../root_src # && check cmake configuration output for warnings or errors
cmake --build . -- install -j4 # if you have 4 cores available for compilation
source ../root_install/bin/thisroot.sh # or thisroot.{fish,csh}

Note: Adjust the ROOT version and the download URL as needed. Always check for the latest version on the official ROOT website. Furthermore, if you are not building from source you are installing precompiled binaries, which may not be up to date versions of ROOT. For specific versions, you may need to build root from source.

---

IPBus (Cactus)

Overview

IPBus, part of the Cactus framework, is a protocol for remote control and monitoring of hardware devices over Ethernet. It's commonly used in high-energy DAQ systems.

Installation Guide

1 Remove previous version (if applicable):

sudo yum groupremove uhal

2 Download yum repo file:

sudo curl https://ipbus.web.cern.ch/doc/user/html/_downloads/ipbus-sw.centos7.repo -o /etc/yum.repos.d/ipbus-sw.repo

3 Install uHAL:

sudo yum clean all
sudo yum groupinstall uhal

Note: I personally had trouble getting this to work on CentOS7 and had to resort to building from source (see below).

Example building from source

See Compiling and installing from source, an example is below:

sudo yum install pugixml-devel
git clone --depth=1 -b v2.7.3 --recurse-submodules https://github.com/ipbus/ipbus-software.git
cd ipbus-software
make -j$(nproc) EXTERN_BOOST_INCLUDE_PREFIX="/opt/boost/include" EXTERN_BOOST_LIB_PREFIX="/opt/boost/lib" EXTERN_PUGIXML_INCLUDE_PREFIX="/usr/local/include" EXTERN_PUGIXML_LIB_PREFIX="/usr/local/lib64/"
sudo make install -j$(nproc)

Note: You may not need to specify EXTERN_BOOST_INCLUDE_PREFIX, EXTERN_BOOST_LIB_PREFIX, EXTERN_PUGIXML_INCLUDE_PREFIX, EXTERN_PUGIXML_LIB_PREFIX. Otherwise, you may need to find where pugixml and boost were installed and replace the paths above respectively.

---

Old Network Scripts

Network scripts are a deprecated feature of red hat linux systems. Now, a connection manager is used via nmcli commands. For reference, the old network scripts are here.

MCH Network script example

vi /etc/sysconfig/network-scripts/ifcfg-{port name}

For example, this is how the UKY teststand 1GbE NIC is configured to communicate with multiple crate using an ethernet splitter.

#
# Connect to MCH
#
TYPE=Ethernet
BOOTPROTO=static
IPADDR=192.168.1.100
NETMASK=255.255.0.0
IPV4_FAILURE_FATAL=no
IPV6INIT=no
IPV6_AUTOCONF=yes
IPV6_DEFROUTE=yes
IPV6_PEERDNS=yes
IPV6_PEERROUTES=yes
IPV6_FAILURE_FATAL=no
NAME=enp5s0
DEVICE=enp5s0
ONBOOT=yes

In particular, the IP_ADDR and NETMASK sections are important. Here the port is specified to accept any traffic on the 192.168.51.xxx subnet. See the networking page for more details.

AMC13 Network script example

vi /etc/sysconfig/network-scripts/ifcfg-{port name}

For example, this is how one of the UKY teststand 10GbE NIC is configured to communicate with the AMC13.

#
# Connect to AMC13
#
TYPE=Ethernet
BOOTPROTO=static
IPADDR=192.168.51.100
NETMASK=255.255.255.0
IPV4_FAILURE_FATAL=no
IPV6INIT=no
IPV6_AUTOCONF=yes
IPV6_DEFROUTE=yes
IPV6_PEERDNS=yes
IPV6_PEERROUTES=yes
IPV6_FAILURE_FATAL=no
NAME=enp1s0f0
DEVICE=enp1s0f0
ONBOOT=yes
AUTOCONNECT_PRIORITY=-999
MTU=9000

In particular, the IP_ADDR, NETMASK, and MTU sections are important. Here the port is specified to accept any traffic on the 192.168.51.xxx subnet. See the networking page for more details.

---

Python2

Overview

Some scripts are written for configuring the DAQ are written in python2. To install python2 on ALMA9, you must install from source. Afterwards, you can run python2 scripts with python2.7 {script name}. Using python2 is not recommended due to it reaching it's EOL some time ago. It's better to manually edit this scripts run using python3

Installation Guide

1 Install required dependencies

First, ensure that the system has the necessary development tools and libraries for compiling Python from source:

sudo dnf groupinstall -y "Development Tools"
sudo dnf install -y gcc openssl-devel bzip2-devel libffi-devel zlib-devel

2 Download Python 2.7.18 source code

Next, download the Python 2.7.18 tarball, which is the last stable version of Python 2

cd /path/to/packages
wget https://www.python.org/ftp/python/2.7.18/Python-2.7.18.tgz

3 Extract and compile Python

Extract the downloaded tarball, configure the build environment, and compile Python

tar xzf Python-2.7.18.tgz
cd Python-2.7.18
./configure --enable-optimizations
make

Note: During the tests, I experienced some errors. I was able to Ctrl-C to cancel these and continue without errors

4 Install Python 2.7

Install the compiled version of Python 2.7 on your system:

sudo make altinstall

Using altinstall ensures that the new version does not overwrite the default python command on your system.

5 Verify installation

python2.7 --version

6 Cleanup:

rm -rf Python-2.7.18.tgz
rm -rf Python-2.7.18

---
